LEONARDO®
Our Lasers and Accessories for Urology
biolitec offers an extensive product range for urologic laser applications - state-of-the-art laser systems, fibers, handpieces and other accessories. Thus you will be well equipped for the advanced treatment of BPH and tumors.

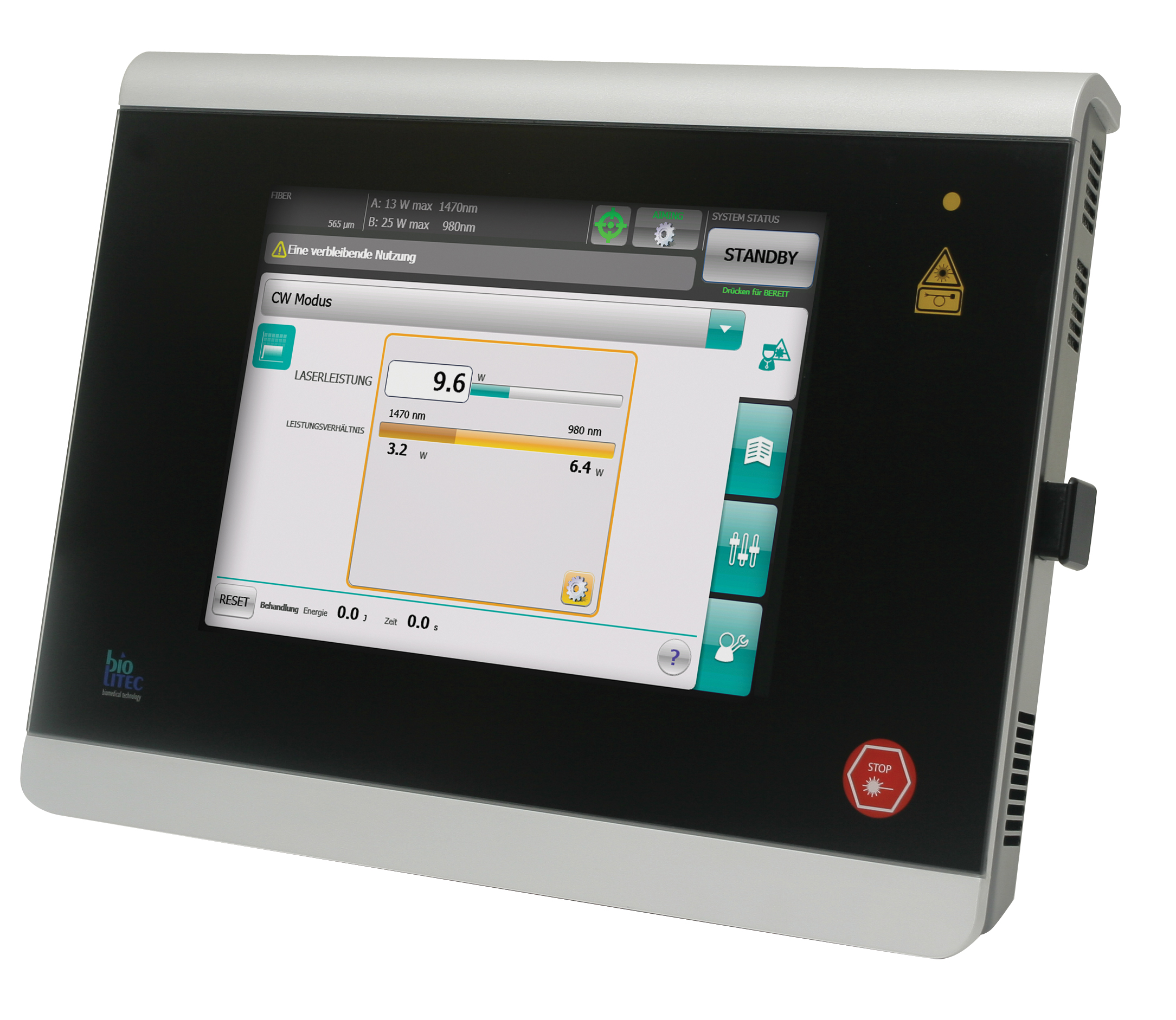

LEONARDO® Laser
|
Technische Daten |
DUAL 45 |
HPD (available in 2014) |
|||
|
REF |
SL980+1470nm45W |
- |
|||
|
Wellenlänge |
980 nm und 1470 nm |
980 nm and 1470 nm |
|||
|
Leistung |
max. 45 Watt (1470 nm/15 Watt + 980 nm/30 Watt), separately adjustable |
max. 200 Watt (1470 nm/40 Watt + 980 nm/ 160 Watt), separately adjustable |
|||
|
Faserkerndurchmesser |
≥ 360 µm |
≥ 360 µm |
|||
|
Pilotstrahl |
532 nm and 635 nm, green 1 mW, red 4 mW, user controlled intensity |
532 nm and 635 nm, green 1 mW, red 4 mW, user controlled intensity |
|||
|
Behandlungsmodus |
CW, Pulse Mode, ELVeS® Signal, ELVeS® Segment, Derma Mode |
CW, Pulse Mode, ELVeS®Signal, ELVeS®Segment, Derma Mode |
|||
|
Pulsdauer/-pause |
0.01 - CW/0.01 - 60 Sek. |
0.01 - CW/0.01 - 60 Sek. |
|||
|
Netzanschluss |
220 - 240 VAC, 50/60 Hz, 450 VA |
220 - 240 VAC, 50/60 Hz, 850 VA |
|||
|
Größe (H×B×T) |
approx. 28 cm × 37 cm × 9 cm |
approx. 20 cm × 37 cm × 26 cm |
|||
|
Gewicht |
approx 8.5 kg |
approx. 15 kg |
|||
All laser sets incl. 3 safety goggles, foot switch, interlock connector, power cord and manual in a carrying case.
Fibers for LEONARDO® and Ceralas®
TWISTER™
|
REF |
Product Ceralas® |
REF LEONARDO® |
Product LEONARDO® |
Length [m] |
Core ø [Fr] |
OD ø [µm]/ [Fr] |
|
501200220 |
TWISTER™ Large Fiber |
- |
- |
3 |
1.8 |
3100/9.3 |
|
501200235 |
TWISTER™ XL Fiber |
- |
- |
3 |
1.8 |
3300/9.3 |
XCAVATOR™
|
501200250 |
XCAVATOR™ Fiber |
- |
- |
3 |
1.8 |
- |
Bare Fibers Flat Tip
|
- |
- |
503200744 |
Bare Fiber 400 µm, Flat Tip, IC |
2.6 |
1.2 |
750 / 2.3 |
|
501200740 |
Bare Fiber 600 µm, Flat Tip, ID |
503200740 |
Bare Fiber 600 µm, Flat Tip, IC |
2.6 |
1.7 |
960/2.6 |
|
501200745 |
Bare Fiber 600 µm, Flat Tip, Adj. Luer, ID |
- |
- |
3 |
1.7 |
950/2.9 |
|
501300400 |
Bare Fiber 1000 µm, Flat Tip, ID |
503300400 |
Bare Fiber 1000 µm, Flat Tip, IC |
2.6 |
2.9 |
1400/4.2 |
|
501300415 |
Bare Fiber 1000 µm, Flat Tip, Adj. Luer, ID |
- |
- |
2.6 |
2.9 |
1400/4.2 |
Bare Fibers Ball Tip
|
501200750 |
Bare Fiber 600 µm, Ball Tip, Adj. Luer, ID (1×6 h) |
503200750 |
Bare Fiber 600 µm, Ball Tip, Adj. Luer, IC (1×6 h) |
2.5 |
1.7 |
960/2.6 |
|
501300410 |
Bare Fiber 1000 µm, Ball Tip, ID |
503300410 |
Bare Fiber 1000 µm, Ball Tip, IC |
2.6 |
2.9 |
1400/4.2 |
Bare Fibers Conical Tip
|
501200741 |
Bare Fiber 600 µm, Conical Tip, ID |
503200741 |
Bare Fiber 600 µm, Conical Tip, IC |
2.6 |
1.7 |
960/2.6 |
|
501300405 |
Bare Fiber 1000 µm, Conical Tip, ID |
503300405 |
Bare Fiber 1000 µm, Conical Tip, IC |
2.6 |
2.9 |
1400/4 |
All fibers are free of latex and DEHP. Our fibers are single use products (unless otherwise indicated) delivered sterile for immediate use.
