Usage:

Our Lasers and Accessories for Urology

biolitec offers an extensive product range for urologic laser applications - state-of-the-art laser systems, fibers, handpieces and other accessories. Thus you will be well equipped for the advanced treatment of BPH and tumors.

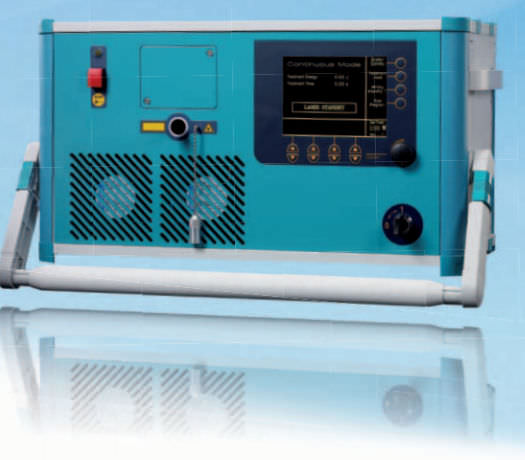

Ceralas® Laser



Model

HPD DUAL

HPD 180

REF

SH980+1470nm200W600u

SH980nm180W400u

Wavelenght

980 nm and 1470 nm

980 nm

Power max.

200 Watt

180 Watt

Fiber

≥ 595 µm Bare Fiber or TWISTER™

≥ 400 µm Bare Fiber or TWISTER™

Laser class

4

4

Pilot beam

635 nm +/- 30 nm; PWM 4 mW (max.)

635 nm +/- 30 nm; PWM 4 mW (max.)

Treatment mode

Continuous Wave (CW), Pulse Mode

Continuous Wave (CW), Pulse Mode

Pulse duration

0,01 - 99,9 Sek.

0,01 - 99,9 Sek.

Power supply

220 - 240 VAC, 50 - 60 Hz, 1240 VA

100 - 240 VAC, 50 - 60 Hz, 730 VA

Cooling

Air cooled system

Air cooled system

Dimensions (H×W×D)

approx. 30 cm × 60 cm × 42 cm

approx. 30 cm × 60 cm × 30 cm

Weight

approx. 46 kg

approx. 30 kg

All laser sets incl. 3 safety goggles, foot switch, interlock connector, power cord and manual in a carrying case.



Fibers for LEONARDO® and Ceralas®



TWISTER™

REF

Product Ceralas®

REF LEONARDO®

Product LEONARDO®

Length [m]

Core ø [Fr]

OD ø [µm]/ [Fr]

501200220

TWISTER™ Large Fiber

-

-

3

1.8

3100/9.3

501200235

TWISTER™ XL Fiber

-

-

3

1.8

3300/9.3



XCAVATOR™

501200250

XCAVATOR™ Fiber

-

-

3

1.8

-



Bare Fibers Flat Tip

-

-

503200744

Bare Fiber 400 µm, Flat Tip, IC

2.6

1.2

750 / 2.3

501200740

Bare Fiber 600 µm, Flat Tip, ID

503200740

Bare Fiber 600 µm, Flat Tip, IC

2.6

1.7

960/2.6

501200745

Bare Fiber 600 µm, Flat Tip, Adj. Luer, ID

-

-

3

1.7

950/2.9

501300400

Bare Fiber 1000 µm, Flat Tip, ID

503300400

Bare Fiber 1000 µm, Flat Tip, IC

2.6

2.9

1400/4.2

501300415

Bare Fiber 1000 µm, Flat Tip, Adj. Luer, ID

-

-

2.6

2.9

1400/4.2





Bare Fibers Ball Tip

501200750

Bare Fiber 600 µm, Ball Tip, Adj. Luer, ID (1×6 h)

503200750

Bare Fiber 600 µm, Ball Tip, Adj. Luer, IC (1×6 h)

2.5

1.7

960/2.6

501300410

Bare Fiber 1000 µm, Ball Tip, ID

503300410

Bare Fiber 1000 µm, Ball Tip, IC

2.6

2.9

1400/4.2



Bare Fibers Conical Tip

501200741

Bare Fiber 600 µm, Conical Tip, ID

503200741

Bare Fiber 600 µm, Conical Tip, IC

2.6

1.7

960/2.6

501300405

Bare Fiber 1000 µm, Conical Tip, ID

503300405

Bare Fiber 1000 µm, Conical Tip, IC

2.6

2.9

1400/4

All fibers are free of latex and DEHP. Our fibers are single use products (unless otherwise indicated) delivered sterile for immediate use.
