Ceralas®
Our Lasers and Accessories for Thoracic Surgery
For Thoracic Surgery, biolitec® has combined cost effective and reliable diode lasers with high quality fiber optics and instruments to make procedures safer and more cost effective for health care professionals with an excellent standard of care for the patients.

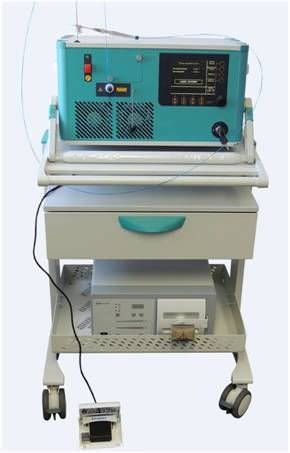

Ceralas® HPD 1350
The Ceralas® HPD 1350 offers multidisciplinary use for a variety of surgical applications. It is easy to set-up as there are no additional external cooling or high voltage requirements. The reliable diode technology is user-friendy and economic due to its low maintenance costs. For Thoracic Surgery, you can choose between 60 Watt and 120 Watt.
|
Model |
HPD 1350 (60 Watt) |
HPD 1350 (120 Watt) |
|||
|
Wavelength |
1350 nm |
1350 nm |
|||
|
Power |
60 Watt |
120 Watt |
|||
|
Fiber |
≥ 400 µm |
≥ 595 µm |
|||
|
Laser class |
4 |
4 |
|||
|
Pilot beam |
635 nm +/- 30 nm; PWM 4 mW (max.) |
635 nm +/- 30 nm; PWM 4 mW (max.) |
|||
|
Treatment mode |
Continuous Wave (CW), Pulse Mode |
Continuous Wave (CW), Pulse Mode |
|||
|
Pulse duration |
Variable 0.01 - 99.9 sec or continuous |
Variable 0.01 - 99.9 sec or continuous |
|||
|
Power supply |
100 - 240 VAC, 50/60 Hz, 400 VA |
220 - 240 VAC, 50/60 Hz, 1155 VA |
|||
|
Cooling |
Air cooled system |
Air cooled system |
|||
|
Dimensions (H×W×D) |
approx. 30 cm × 60 cm x 30 cm |
approx. 30 cm × 60 cm × 30 cm |
|||
|
Weight |
approx. 30 kg |
approx. 46 kg |
|||
|
REF |
Product |
|
SH1350nm120W600u |
Laser Set Ceralas® HPD 1350nm 120W |
|
SH1350nm60W400u |
Laser Set Ceralas® HPD 1350nm 60W |
All laser sets incl. 3 safety goggles, foot switch, interlock connector, power cord and manual in a carrying case.
1350 nm for Thoracic Surgery / Pneumology / General Surgery
Fibers
We offer you high quality fibers with a variety of fiber tips and diameters. Choose between Bare Fibers, gas- and liquid-cooled fibers as well as special fibers.
Bare Fibers Flat Tip
|
REF |
Product |
Length [m] |
Core ø [µm]/[Fr] |
OD ø [µm]/[Fr] |
|
501200745 |
Bare Fiber 600 µm, Flat Tip, Adj. Luer, ID (1×6 h) |
3 |
565/1.7 |
860/2.6 |
|
501300415 |
Bare Fiber 1000 µm, Flat Tip, Adj. Luer, ID (1×6 h) |
2.6 |
945/2.9 |
1400/4 |
Gas Liquid Cooled Fibers
|
501200520 |
GLC 180 Gas-, Liquid Cooled fiber, Broncho, |
3 |
565/1.7 |
1800/5.4 |
|
501200525 |
GLC 180 Gas-, Liquid Cooled fiber, ID (1×6 h) |
3 |
565/1.7 |
1800/5.4 |
Special Fiber
|
501200990 |
Jumper for LFHP, ID (1×6 h) |
3 |
565/1.7 |
1800/5.4 |
