LEONARDO®

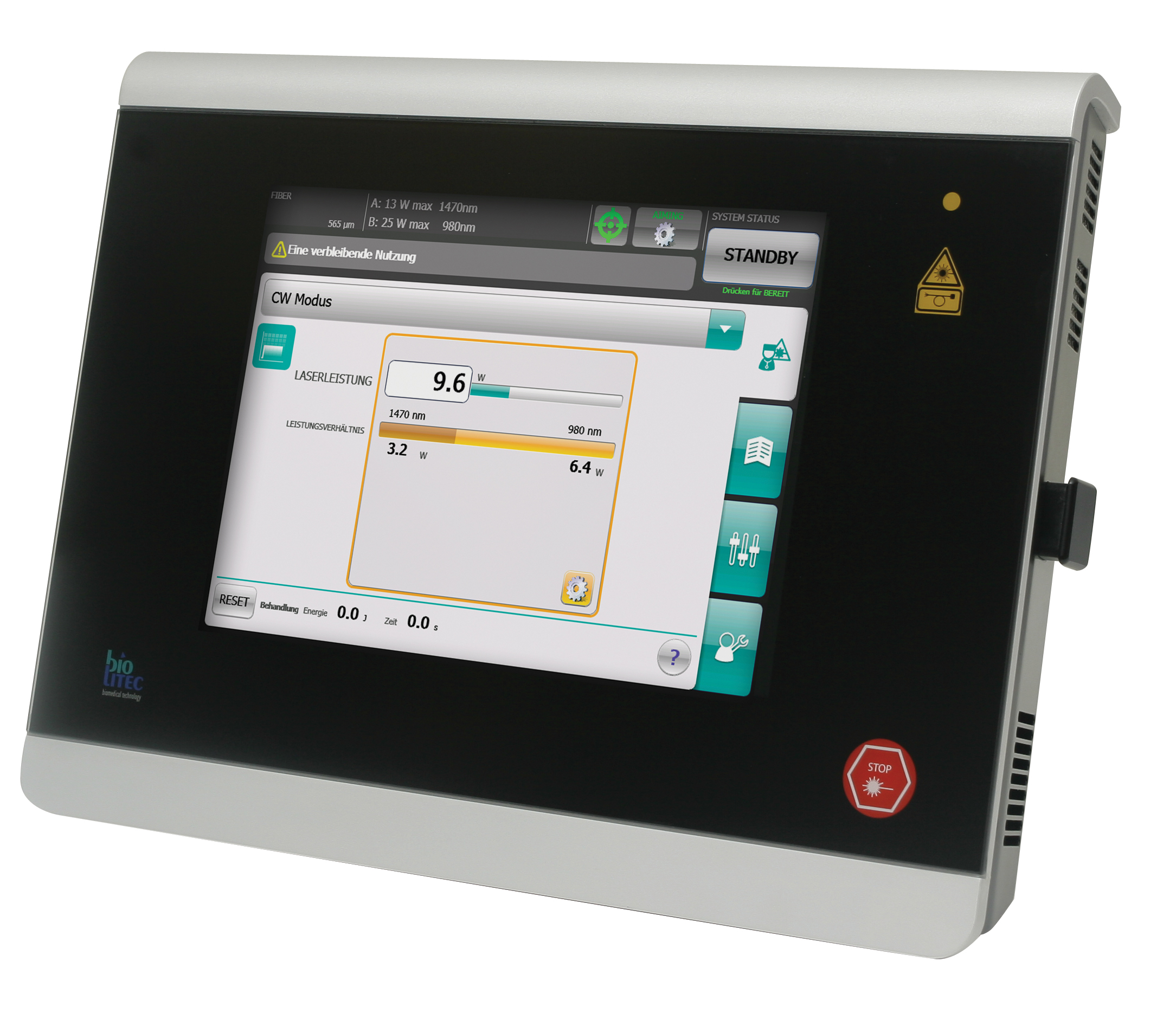

Our new LEONARDO® laser is the most versatile and universal medical laser in the market today. This highly compact diode laser features a wavelenght of 1470 nm, which is ideal for the use in phlebology. You will benefit from a user-friendly, versatile, universal and economic technology.
|
Model |
DUAL 45 |
|
REF |
SL980+1470nm45W |
|
Wavelength |
980 nm and 1470 nm |
|
Power |
max. 45 Watt (1470 nm/15 Watt + 980 nm/30 Watt) separately adjustable |
|
Fiber diameter |
≥ 360 µm |
|
Aiming beam |
532 nm and 635 nm, green 1 mW, red 4 mW, user controlled intensity |
|
Treatment mode |
CW, Pulse Mode, ELVeS® Signal, ELVeS® Segment, Derma Mode |
|
Pulse duration/-pause |
0.01 - 60 sec/0.01 - 60 sec |
|
Power supply |
220 - 240 VAC, 50/60 Hz, 450 VA |
|
Dimensions (H×W×D) |
approx. 28 cm × 37 cm x 9 cm |
|
Weight |
approx. 8.5 kg |
Fibers*
Our fibers match perfectly with the LEONARDO® laser. Our classic is ELVeS Radial™. But evolution continues. Our effort to achieve a unique system in terms of safety and flexibility for the endoluminal treatment of varicose veins has led to our new 2ring fiber technology. ELVeS Radial 2ring™ splits the power in two phases which leads to an effective closure of the vein. For the treatment of superficial venous reflux on perforator veins and small saphenous veins we have designed ELVeS Radial slim™. There is the right fiber for any situation.
|
REF |
Product |
PU ** |
length [m] |
ø fiber tip [mm] |
CI*** |
|
503100150 |
ELVeS Radial slim™ Fiber, IC |
5 |
2,5 |
1,3 |
4 Fr |
|
503100100 |
ELVeS Radial™ Fiber, IC |
5 |
2,5 |
1,85 |
6 Fr |
|
503100170 |
ELVeS Radial 2ring™ Fiber, IC |
5 |
2,5 |
1,85 |
6 Fr |
Kits*
With the kits we offer you a combined package to get you started for innovative laser treatment. Select your fiber of choice and go ahead.
|
503100160 |
ELVeS Radial slim™ Kit/Venflon™, IC |
5 |
2,5 |
1,3 |
|
503100110 |
ELVeS Radial™ Kit, IC |
5 |
2,5 |
1,85 |
|
503100120 |
ELVeS Radial™ Kit/EG, IC |
5 |
2,5 |
1,85 |
|
503100190 |
ELVeS Radial 2ring™ Kit/EG, IC |
5 |
2,5 |
1,85 |
