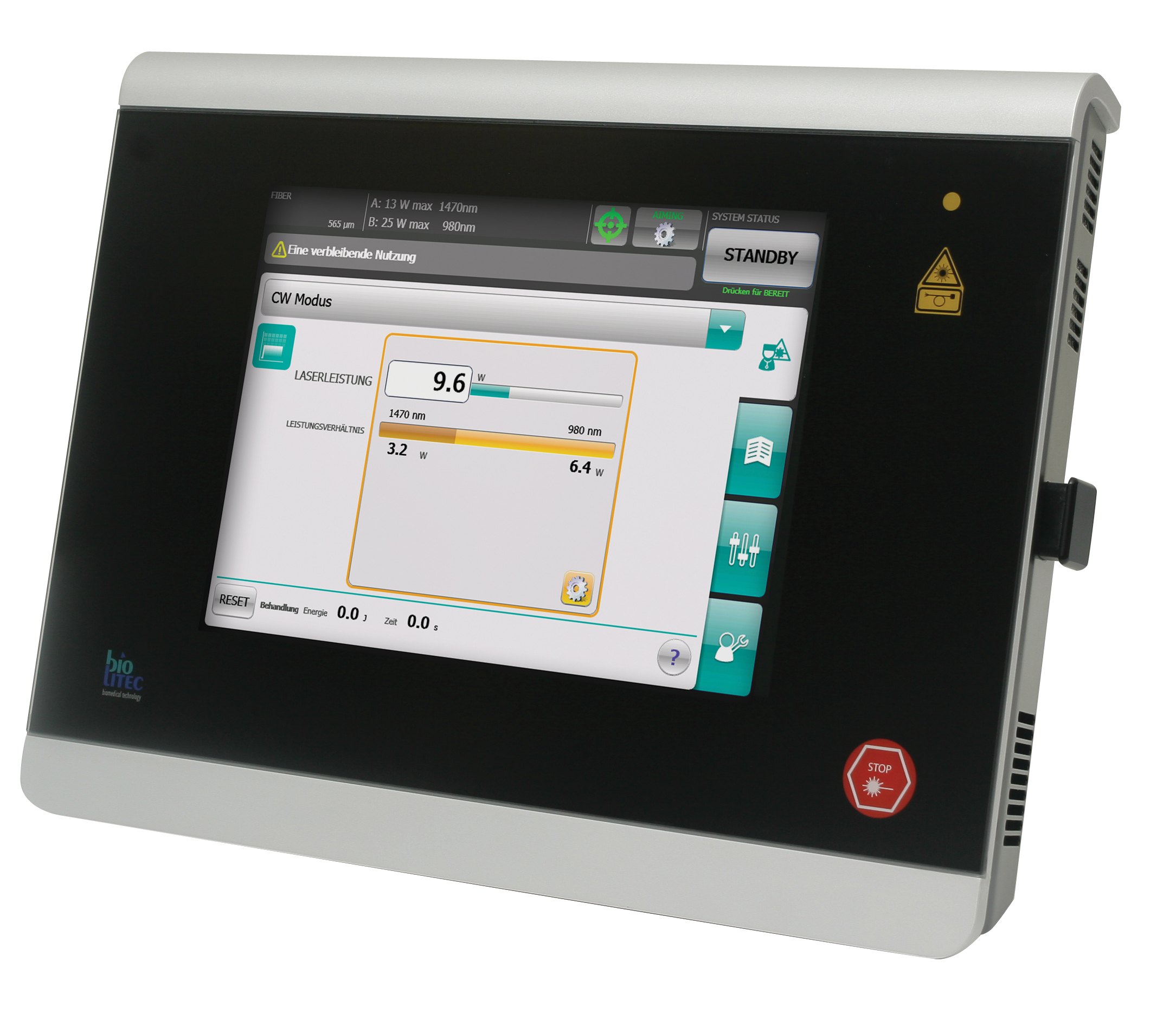

LEONARDO®
Our Lasers and Accessories for ENT
The biolitec® laser and fiber systems have a compact, maintenance-free design for effective and safe use in ENT surgery. Specifically developed for various applications, this sophisticated system offers a wide range of possibilities for minimally invasive laser therapy of ear, nose and throat ailments.
Model |
DUAL 45 |
REF |
SL980+1470nm45W |
Wavelength |
980 nm and 1470 nm |
Power |
max. 45 Watt (1470 nm/15 Watt + 980 nm/30 Watt) separately adjustable |
Fiber diameter |
≥ 360 µm |
Aiming beam |
532 nm and 635 nm, green 1 mW, red 4 mW, user controlled intensity |
Treatment mode |
CW, Pulse Mode, ELVeS® Signal, ELVeS® Segment, Derma Mode |
Pulse duration?/-pause |
0.01 - 60 sec/0.01 - 60 sec |
Power supply |
220 - 240 VAC, 50/60 Hz, 450 VA |
Dimensions (H×W×D) |
approx. 28 cm × 37 cm × 9 cm |
Weight |
approx. 8.5 kg |
All laser sets incl. 3 safety goggles, foot switch, interlock connector, power cord and manual in a carrying case.
Fibers
Bare Fibers Flat Tip Length
REF |
Product |
PU * |
Length [m] |
OD ø [mm] |
503200740 |
Bare Fiber 600 µm, Flat Tip, IC (1×3 months) |
5 |
2.5 |
0.96 |
503200315 |
Reusable Bare Fiber 600 µm, Flat Tip, IC |
5 |
3 |
0.95 |
503201919 |
Reusable Bare Fiber 600 µm, Flat Tip, IC (10×12 h) |
5 |
3 |
0.95 |
503201921 |
Reusable Bare Fiber 600 µm, Flat Tip, IC (10×1 h) |
5 |
3 |
0.95 |
Kits
503300625 |
DCR Procedure Kit, IC |
5 |
2.6 |
2.0 |
Handpieces and instruments
REF |
Product |
PU ** |
ID |
500200008 |
ENT Handpiece Set/7 pieces/2.5, 5 or 11 cm length |
1 |
|
503200980 |
Derma Set Change Optic 0.6/1.0/1.5 mm, IC (5y) |
1 |
|
AB1932 |
ENT Dual channel Handpiece with integrated |
1 |
1.2 |
AB2099 |
Handpiece 30 cm flexible (autoclavable) for Larynx |
1 |
1.2 |
AB2122 |
Rigid cross-piece handpiece 30 cm with integrated |
1 |
1.2 |
