LEONARDO®
LEONARDO® for Gynecology

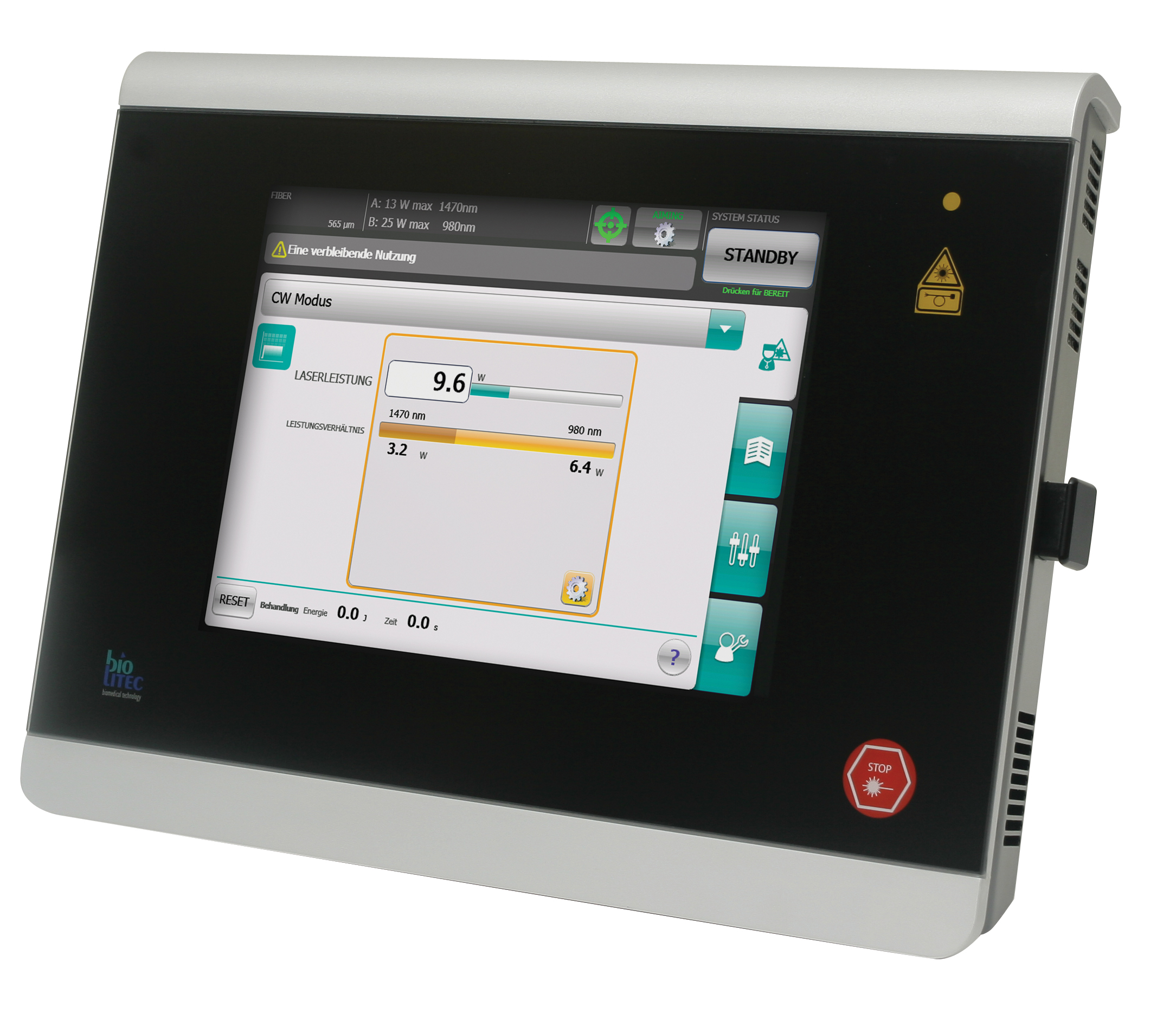

Our LEONARDO® laser is the most versatile and universal medical laser in the market today. This highly compact diode laser features the combination of two wavelenghts, 980 nm and 1470 nm, with a simple touch of the screen. With LEONARDO®, you will benefit from a user-friendly, versatile, universal and economic technology.
|
Model |
DUAL 45 |
HPD (available in 2014) |
|||
|
REF |
SL980+1470nm45W |
- |
|||
|
Wavelength |
980 nm and 1470 nm |
980 nm and 1470 nm |
|||
|
Power |
max. 45 Watt (1470 nm/15 Watt + 980 nm/30 Watt), separately adjustable |
max. 200 Watt (1470 nm/40 Watt + 980 nm/ 160 Watt), separately adjustable |
|||
|
Fiber diameter |
≥ 360 µm |
≥ 360 µm |
|||
|
Aiming beam |
532 nm und 635 nm, green 1 mW, red 4 mW, user controlled intensity |
532 nm und 635 nm, green 1 mW, red 4 mW, user controlled intensity |
|||
|
Treatment mode |
CW, Pulse Mode, ELVeS® Signal, ELVeS®Segment, Derma Mode |
CW, Pulse Mode, ELVeS®Signal, ELVeS®Segment, Derma Mode |
|||
|
Pulse duration/-pause |
0.01 - 60/0.01 - 60 Sek. |
0.01 - 60 /0.01 - 60 Sek. |
|||
|
Power supply |
220 - 240 VAC, 50/60 Hz, 450 VA |
220 - 240 VAC, 50/60 Hz, 850 VA |
|||
|
Dimension (H×W×D) |
approx. 28 cm × 37 cm × 9 cm |
approx. 20 cm × 37 cm × 26 cm |
|||
|
Weight |
approx. 8.5 kg |
approx. 15 kg |
|||
All laser sets incl. 3 safety goggles, foot switch, interlock connector, power cord and manual in a carrying case.
Fibers for LEONARDO®
For gynecology, we have developed innovative fibers to meet the special needs of this field of application: PolyFiber™ for the teatment of Polyps and MyoFiber™ for the gentle excision of myomas. Both provide safe and efficient transfer to the laser energy. Besides, our new LEONARDO® also matches perfectly with our Bare Fibers. Choose between Flat Tip, Ball Tip and Conical Tip for modern laser treatment of various discomforts in gynecology.
|
REF |
Product |
Length [m] |
Coreø [µm]/[Fr] |
OD ø [µm]/[Fr] |
|
503200205 |
PolyFiber™, IC |
3 |
400/1.2 |
1850/5.5 |
|
503200215 |
MyoFiber™, IC |
3 |
565/1.8 |
3100/9 |
Bare Fibers Flat Tip
|
503200740 |
Bare Fiber 600 µm, Flat Tip, IC |
2.6 |
565/1.7 |
960/2.6 |
|
503300400 |
Bare Fiber 1000 µm, Flat Tip, IC |
2.6 |
945/2.9 |
1400/4.2 |
Bare Fibers Ball Tip
|
503200750 |
Bare Fiber 600 µm, Ball Tip, Adj. Luer, IC (1×6 h) |
2.5 |
565/1.7 |
960/2.6 |
|
503300410 |
Bare Fiber 1000 µm, Ball Tip, IC |
2.6 |
945/2.9 |
1400/4.2 |
Bare Fibers Conical Tip
|
503200741 |
Bare Fiber 600 µm, Conical Tip, IC |
2.6 |
565/1.7 |
960/2.6 |
|
503300405 |
Bare Fiber 1000 µm, Conical Tip, IC |
2.6 |
945/2.9 |
1400/4 |
