Ceralas®
Ceralas® for Gynecology

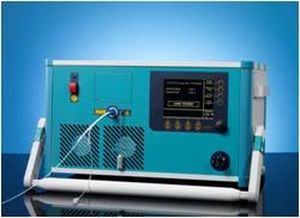

The Ceralas® HPD is our innovative diode laser system in a compact and maintenance-free design. With applicators specially designed for the various fields of application, the laser system provides a wide range of possibilities in minimally invasive laser therapy. For applications in gynecology, our Ceralas® HPD Laser is available with 120 Watt and with 180 Watt.
|
Model |
HPD Laser, 120 Watt |
HPD Laser, 180 Watt |
|||
|
REF |
SH980nm120W400u |
SH980nm180W400u |
|||
|
Wavelength |
980 nm |
980 nm |
|||
|
Power |
max. 120 Watt |
max. 180 Watt |
|||
|
Fiber |
≥ 400 µm Bare Fiber, PolyFiber™, MyoFiber™ |
≥ 400 µm Bare Fiber, PolyFiber™, MyoFiber™ |
|||
|
Laser class |
4 |
4 |
|||
|
Pilot beam |
635 nm, 4 mW |
635 nm, 4 mW |
|||
|
Treatment mode |
Continuous Wave (CW), Pulse Mode |
Continuous Wave (CW), Pulse Mode |
|||
|
Pulse duration |
0.01 - 99.9 sec |
0.01 - 99.9 sec |
|||
|
Power supply |
100 - 240 VAC, 50 - 60 Hz, 660 VA |
100 - 240 VAC, 50 - 60 Hz, 800 VA |
|||
|
Cooling |
Air cooled system |
Air cooled system |
|||
|
Dimensions (H×W×D) |
approx. 30 cm × 60 cm × 30 cm |
approx. 30 cm × 60 cm × 30 cm |
|||
|
Weight |
approx. 30 kg |
approx. 30 kg |
|||
All laser sets incl. 3 safety goggles, foot switch, interlock connector, power cord and manual in a carrying case.
Fibers for Ceralas®
For gynecology, we have developed innovative fibers to meet the special needs of this field of application: PolyFiber™ for the teatment of Polyps and MyoFiber™ for the gentle excision of myomas. Both provide safe and efficient transfer to the laser energy. Besides, our Ceralas® HPD also matches perfectly with our Bare Fibers. Choose between Flat Tip, Ball Tip and Conical Tip for modern laser treatment of various discomforts in gynecology.
Special Contact Fibers
|
REF |
Product |
Length [m] |
Core ø [µm]/[Fr] |
OD ø [µm]/[Fr] |
|
501200205 |
PolyFiber™, IC |
3 |
400/1.2 |
1850/5.5 |
|
501200215 |
MyoFiber™, IC |
3 |
565/1.8 |
3100/9 |
Bare Fibers Flat Tip
|
501200744 |
Bare Fiber 400 µm, Flat Tip, ID |
3 |
400/1.2 |
750/2.3 |
|
501200740 |
Bare Fiber 600 µm, Flat Tip, ID |
2.6 |
565/1.7 |
860/2.6 |
|
501200745 |
Bare Fiber 600 µm, Flat Tip, Adj. Luer, ID (1×6 h) |
3 |
565/1.7 |
960/2.9 |
|
501300400 |
Bare Fiber 1000 µm, Flat Tip, ID |
2.6 |
945/2.9 |
1400/4 |
|
501300415 |
Bare Fiber 1000 µm, Flat Tip, Adj. Luer, ID (1×6 h) |
2.6 |
945/2.9 |
1400/4 |
Bare Fibers Ball Tip
|
503200750 |
Bare Fiber 600 µm, Ball Tip, Adj. Luer, ID |
2.5 |
565/1.7 |
860/2.6 |
|
503300410 |
Bare Fiber 1000 µm, Ball Tip, ID |
2.6 |
945/2.9 |
1400/4.2 |
Bare Fibers Conical Tip
|
503200741 |
Bare Fiber 600 µm, Conical Tip, IC |
2.6 |
565/1.7 |
960/2.6 |
|
503300405 |
Bare Fiber 1000 µm, Conical Tip, IC |
2.6 |
945/2.9 |
1400/4 |
All fibers are free of latex and DEHP. Our fibers are single use products (unless otherwise indicated) delivered sterile for immediate use.
