Usage:

Our Lasers and Accessories for Orthopedics

EVOLVE® features an innovative design for safe, effective and flexible use in all surgical disciplines. The system provides a wide range of minimally-invasive and micro-invasive solutions to broaden your therapeutic options. EVOLVE® offers innovative featuers such as a specific and effective absorption of its wavelenght (980 nm.) biolitec®`s PLDD Kits contain a special 220 µm fibre for micro-invasive access (21 G) to the disc area.

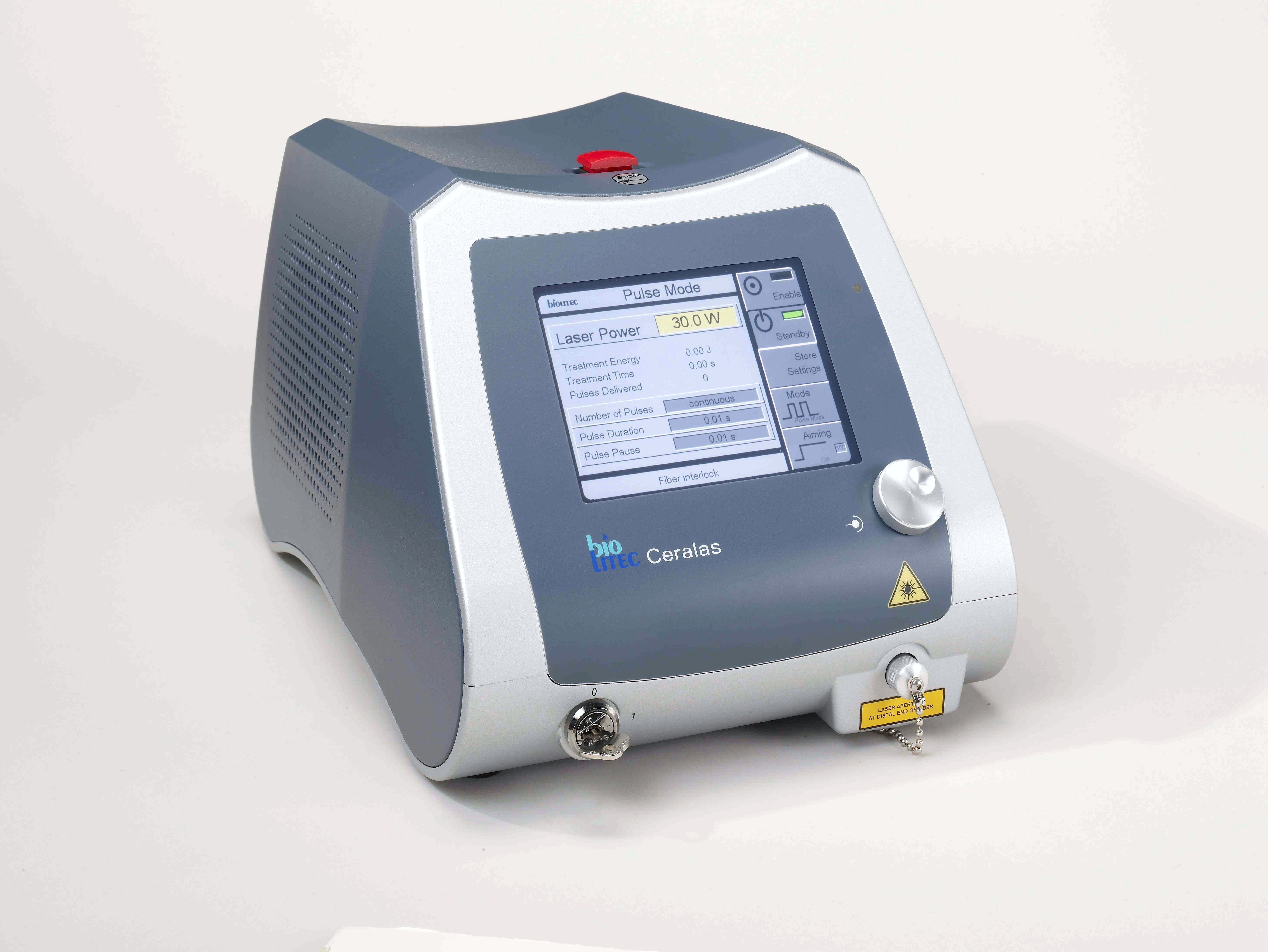

Ceralas® Laser system

The Ceralas® E 980 laser platform is based on the absorption characteristics of the 980 nm wavelength, which, due to its interaction with H2O and hemoglobin, enables procedures to be carried out safely and accurately, especially in proximity of delicate anatomical structures.

Micro-surgical precision is guaranteed by the technical characteristics of the special Ceralas® laser fibres, which allow surgical effectiveness, ease of handling and maximum safety.

Specifications

Ceralas® E

Wavelenght

980 nm

Optical output

30 watts at the distal end of the optical fiber (7,5 watts with a 220 µm fiber

Aiming beam

635nm, continuously adjustable britghtness, max. 4mW

Operating modes

CW, Pulse Mode, Dema Mode

Pulse length/ interval

0.01 - 100 Sek.

Power supply

100 - 240 VAC; 50 - 60 Hz

Dimensions

22cm × 26cm × 38cm

Weight (less carrying case)

7,5 kg



502200830

PLDD Kit 360/18/150 biolitec, Y-Click Adapter, ID-Technology

502200835

PLDD Kit 360/21/150 biolitec, Y-Click Adapter, ID-Technology

Fibers

The wide range of laser fibres available in various sizes (200 to 1,000 microns) and shapes (tapered, flat, spherical), combined with the exclusive and patented kits for EVOLVE® procedures, enables incisions, vaporization and coagulation to be performed selectively and accurately on the basis of the clinician‘s therapeutic needs.

SKU:
CERLAS03
